CTS-4 Component Test System

Speed, Accuracy, Flexibility, and Ease-of-Use

A turn-key, fully-automated, component test system that radically changes the dynamics of complex, RF measurements.

Incorporating Eljay's software with the latest in third party measurement hardware. we deliver unmatched speed and accuracy when taking RF measurements.

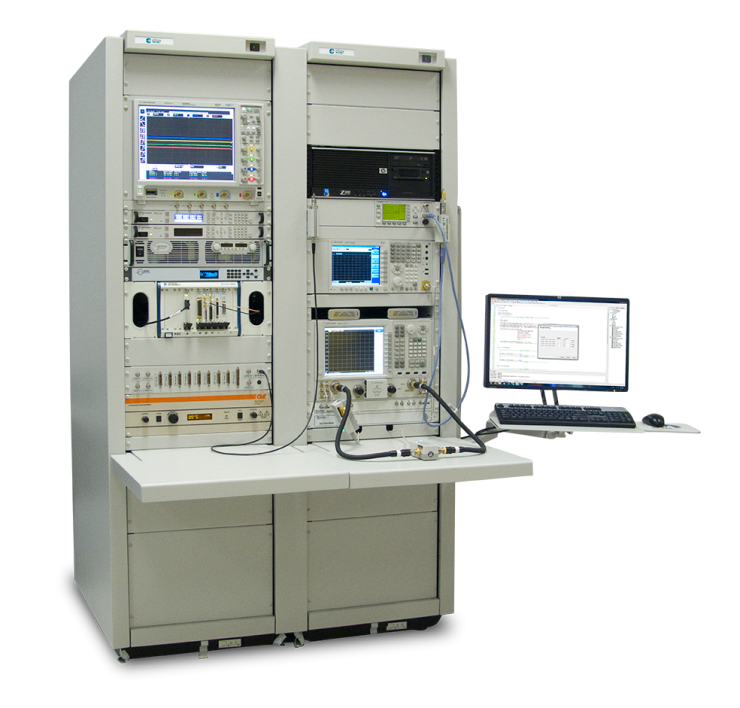

CTS-4, our 4th generation component test system, is a fully-automated, turn-key component test system that provides a single-connection, multiple-measurement architecture used in both low and high-volume development and manufacturing of: high-frequency commercial and military modules and MMIC devices, such as transmit and receive modules (T/R); LMDS and MMDS CPE; and base station testing.

CTS-4 systems are used in:

• Research and development - CTS-4 performs precise electrical measurements on increasingly complex and high-speed chips in order to assure quality and reliability, reduce costly redesigns, accelerate time-to-market, and improve chip fabrication processes
• Manufacturing - As production test systems, CTS-4 reduces manufacturing costs of complex and high-speed chips by supporting the identification of defective chips and modules early in the production process. CTS-4 performance, due to speed and accuracy, offers high-throughput capabilities even while capturing all measurements required in complex designs.

Speed

Meeting the ever-expanding requirements of engineering, yet fast enough for automated manufacturing production, Eljay CTS-4 strikes the perfect balance of flexibility and speed without sacrificing accuracy. Eljay CTS-4 leverages the newest available components and Eljay’s fourth generation measurement software. The result, a state-of-the-art system built for complex, multi-state device testing—such as T/R chips and modules—that measures every device under every user condition with unsurpassed accuracy.

Accuracy

Based on the latest advanced equipment from Keysight Technologies™ and National Instruments™, Eljay CTS-4 delivers measurements that are precise and efficient. By combining Eljay’s software expertise with the performance of Keysight’s PNA-X and PXA, Eljay CTS-4 is fast, user-friendly, and unparalleled in measurement accuracy.

Flexibility

Designed for maximum configuration and test measurement flexibility, the System’s agile and scalable architecture delivers high-speed, high-volume microwave and millimeter-wave measurement capabilities while providing frequency coverage from 10 MHz to 50 GHz.

For added flexibility, Eljay CTS-4 also features:

• Front panel control for manual measurements
• Four RF test ports
• Optional high-power capabilities
• Fast, repeatable, reliable, and stable measurement algorithms

Ease-of-Use

Eljay WIDE (Wizard-based Integrated Development Environment ) makes even the most complex measurement processes easy to script, eliminating the requirement for specialized programmers. The extensive range of intuitive measurement and control wizards empowers all users—even those without coding skills—to build professional, accurate test routines. WIDE software enables users to quickly and easily create sophisticated, interactive test scripts that can run as standalone programs.
